| 상품 이름: | 장벽을 표류시키는 장벽을 표류시키면서, 항구 보호 배리어가 근해 장벽을 품습니다 | 재료: | 고밀도 폴리에틸렌 |
|---|---|---|---|
| brand name: | Jerryborg | 애플리케이션: | 해군 보호, 정지 선박 |
| 공항: | 칭다오 항구 | 증명서: | ISO9001 : 2015 |
| 포장: | 발가벗은 패킹 | MOQ: | 1개 부분 |
| 하이 라이트: | PSB600 해상 안보 장벽,해군 국방 해상 안보 장벽,PSB600 떠있는 안전장벽 |
||
PSB600 Floating Maritime Security Barrier For Navy Defense
Maritime Security Barrier

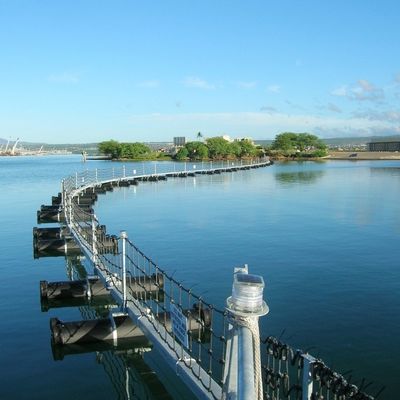

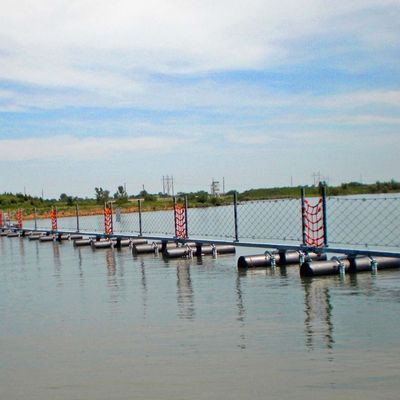

Maritime security barrier system is invented to provide better protection for warships and ports.

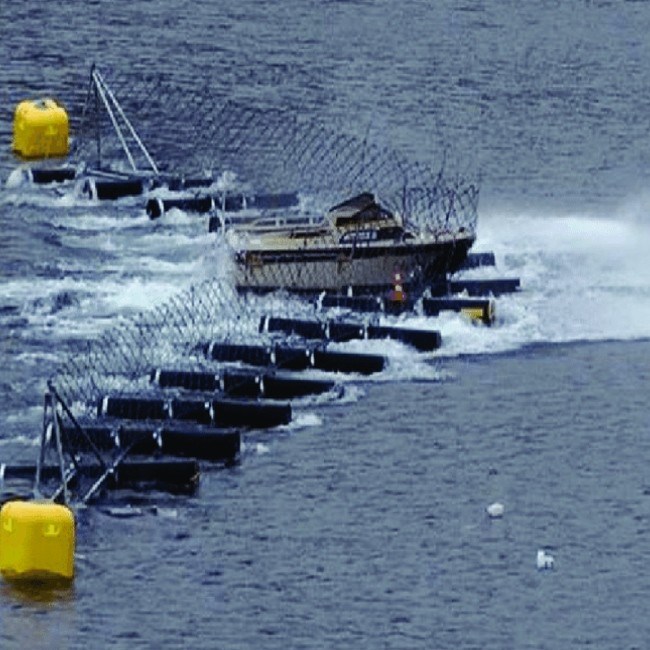

These maritime security barriers are composed of a variety of barrier float assemblies connected to another one, which forms a barrier to delay or stop the attack caused by high-speed boats. Maritime security barriers consist of three types including PSB5500, PSB600, and PSB-T type with different ultimate stopping energy and working stopping energy.
Maritime Security Barrier Features
Maritime security barrier is durable and stable, because that the thickness and diameter of HDPE pontoon make sure the structural strength is strong enough to withstand the weight of the heavy steel beam and netting to stop the high-energy boat. Besides that, the maritime security barrier is easy to operate and maintain, it saves labor cost and time. It is designed to be a simple structure and lightweight with relatively low wind, current, and wave loading energy.
Maritime Security Barrier Specification
| type | Ultimate stopping energy | Working stopping energy |
| PSB 5500 | 9.09M ft lbf/12.33 MJ | 5.49M ft lbf/7.44 MJ |
| PSB600 | 5.90M ft lbf/7.99 MJ | 2.49 ft lbf/3.37 MJ |
| PSB-T | 5.90M ft lbf/7.99 MJ | 3.70M ft lbf/5.01 MJ |
Maritime Security Barrier Application
Maritime security barrier is able to stop the invasion of the ships as follows.
1.FIAC
2.BBIED
3.Multiple ships and groups attack
4.Low speed, heavy tonnage vessel
5.High speed, low tonnage vessel
6.The intruder at full speed before, during, and after the impact
In addition to these applications, the maritime security barrier system is able to stop attacks on naval bases, ships, military-strategic ammunition and fuel depots, nuclear ships/submarines, and military support facilities.
